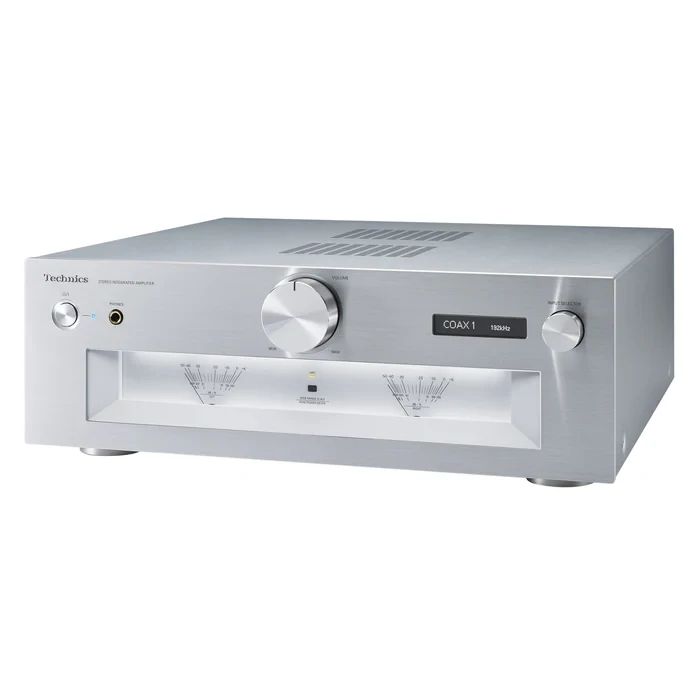

- A full digital amp capable of reproducing extremely pure and dynamic sound, the SU-G700M2 Stereo Integrated Amplifier has inherited Technics full-digital core amplifier technologies such as the JENO Engine (Jitter Elimination and Noise-Shaping Optimization) for highest signal precision free of jitter and distortion, and LAPC (Load Adaptive Phase Calibration) for optimum matching to any speaker.
The SU-G700M2 Stereo Integrated Amp has inherited the new domain of sound attained by the SU-R1000 Reference Class Amp. In addition to the full-digital JENO Engine with outstanding sound expressivity, the SU-G700M2 comes with a new power supply system that offers high-speed response and low noise. The three-section configuration is packed with noise and vibration prevention measures. The SU-G700M2 is complete with Phono MC input. It delivers extremely pure and dynamic sound regardless of whether the sound source is analog or digital.
- Exquisite, Grand-Class Amplifier with full-digital core amplifier technologies
- Natural, detailed sound with load adaptive phase calibration (LAPC)
- Vintage and modern connections with low distortion and a wide frequency range
- Gorgeous, sculptural body with sleek, hairline-brushed aluminum cabinet
|
Output Power |
70W + 70W ( 1kHz, T.H.D. 0.5 %, 8Ω, 20kHz LPF ), 140W + 140W ( 1kHz, T.H.D. 0.5 %, 4Ω, 20kHz LPF ) |
|
FTC Output Power |
70W + 70W ( 1kHz, T.H.D. 0.5 %, 8Ω, 20kHz LPF ), 140W + 140W ( 1kHz, T.H.D. 0.5 %, 4Ω, 20kHz LPF ) |
|
Load Impedance |
4Ω-16Ω |
|
Frequency Response - PHONO (MM) |
2.5 mV / 47 kΩ |
|
Frequency Response - PHONO (MC) |
300 uV /100 Ω |
|
Frequency Response - LINE |
200 mV / 22 kΩ |
|
Analogue Input Terminal |
LINE x 2 (LINE1, LINE2 / MAIN IN), PHONO (MM/MC) x1 |
|
Digital Input Terminal |
Optical digital x2 (OPT 1, OPT 2), Coaxial digital x2 (COAX 1, COAX 2), USB-B x1 (PC) |
|
Analogue Output Terminal |
LINE OUT x1, PRE OUT x1 |
|
Headphone Output |
Yes, Stereo Φ6.3 mm |
|
PC (USB-B) |
USB 2.0 high-speed, USB Audio Class 2.0, Asynchronous mode |
|
Support Codec |
PCM Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit), DSD Yes (2.8 MHz, 5.6 MHz, 11.2 MHz) |
|
DSD control mode |
ASIO Native mode, DoP mode |
|
Power Supply |
AC 120 V ,60 Hz |
|
Power Consumption |
95W |
|
Dimensions (W x H x D) |
16-15/16 x 5-13/16 x 16-27/32 inch |
|
Weight |
Approx. 28 lbs |
|
Accessories |
AC Cord, Remote Control, Batteries for Remote Control, Owner's Manual |
