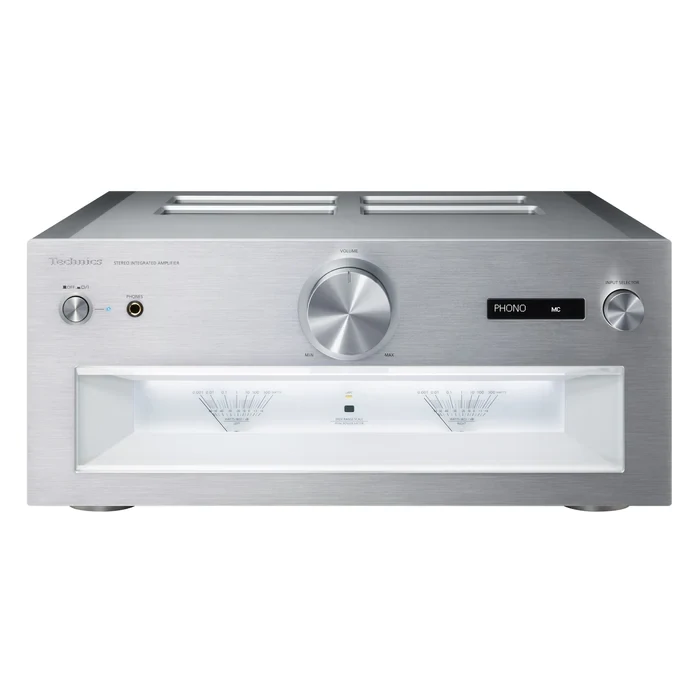

- The SU-R1000 is a new kind of integrated amplifier, equipped with the next evolution of our full digital amplifier technology. In addition to highly pure sound with the influence of noise and distortion eliminated, we have achieved superior drive functions and a sound overflowing with energy.
Equipped with the next evolution of our full digital amplifier technology, the SU-R1000 produces an ideal sound that conveys all the richness and life of the original without any loss of fidelity. The SU-R1000 breaks through to a new world of sound, with superior sound quality and functionality, bringing together the latest Technics technology.
- JENO Engine (Jitter Elimination and Noise-shaping Optimization) to reproduce the nuances of music
- ADCT (Active Distortion Cancelling Technology) for expansive sound ambience
- Advanced Speed Silent Power Supply that results in the best performance from the digital amplifier
- Four Independent Power Supply Units for a high S/N ratio and superb separation
- High-grade Digital/Analog I/O Circuit for outstanding sound quality from any input source
|
Accurate Digital Technology |
JENO Engine (Jitter Elimination and Noise-shaping Optimisation), LAPC (Load Adaptive Phase Calibration), Advanced Speed Silent Power Supply, Battery Driven Clock Generator, Noiseless Signal Technology, Advanced Speed Silent Power Supply, Advancement of Power Supply |
|
Technics Definitive Design |
High-rigidity Cabinet, Three-section Configuration |
|
FTC Output Power |
150W + 150W ( 1kHz, T.H.D. 0.5 %, 8Ω, 20kHz LPF ), 300W + 300W ( 1kHz, T.H.D. 0.5 %, 4Ω, 20kHz LPF) |
|
Input Sensitivity / Input Impedance |
LINE 200 mV / 22 kΩ, PHONO (MM) 2.5 mV / 47 kΩ, PHONO(MC) 300uV /100Ω |
|
Frequency Response |
LINE 5 Hz-80 kHz (-3 dB, 8 Ω), PHONO (MM) 20 Hz - 20 kHz (RIAA DEVIATION ±1 dB, 8 Ω), DIGITAL 5 Hz - 80 kHz (-3 dB, 8 Ω) |
|
Load Impedance |
4 Ω-16 Ω |
|
Analogue Input Terminal |
LINE x 2 (LINE 1, LINE2), LINE XLR BALANCED x1, PHONO (MM/MC) x1, PHONO XLR BALANCED(MC) x1, MAIN IN x1, REC IN x1 |
|
Digital Input Terminal |
Optical digital x2 (OPT 1, OPT 2) , Coaxial digital x2(COAX 1, COAX 2), USB-B x2 (PC 1, PC 2) |
|
Analogue Output Terminal |
PRE OUTx1, REC OUT x1 |
|
Headphone Output |
Yes, Stereo Φ6.3mm |
|
Support Codec (PCM) |
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit) |
|
Support Codec (DSD) |
Yes (2.8 MHz, 5.6 MHz, 11.2 MHz, 22.4 MHz* *ASIO Native mode only) |
|
Power Supply |
AC 120 V ,60 Hz |
|
Power Consumption |
220 W |
|
Dimensions (W x H x D) |
430 mm x 191 mm x 459 mm (16-15/16 x 7-17/32 x 18-3/32 inch) |
|
Weight |
Approx. 22.8 kg (Approx. 50.3lbs) |
|
Accessories |
Remote Control, Calibration Record, AC Cord, Owner's Manual |
